NTI Enviromux 3-Phase AC Power Überwachung Monitor Voltage E-ACLM-3P480 Network

NTI Enviromux 3-Phase AC Power Überwachung Monitor Voltage E-ACLM-3P480 Network

€159,99 EUR
€159,99 EUR
Sale Ausverkauft
Versand wird beim Checkout berechnet
NTI Enviromux 3-Phase AC Power Überwachung Monitor Voltage E-ACLM-3P480 Network

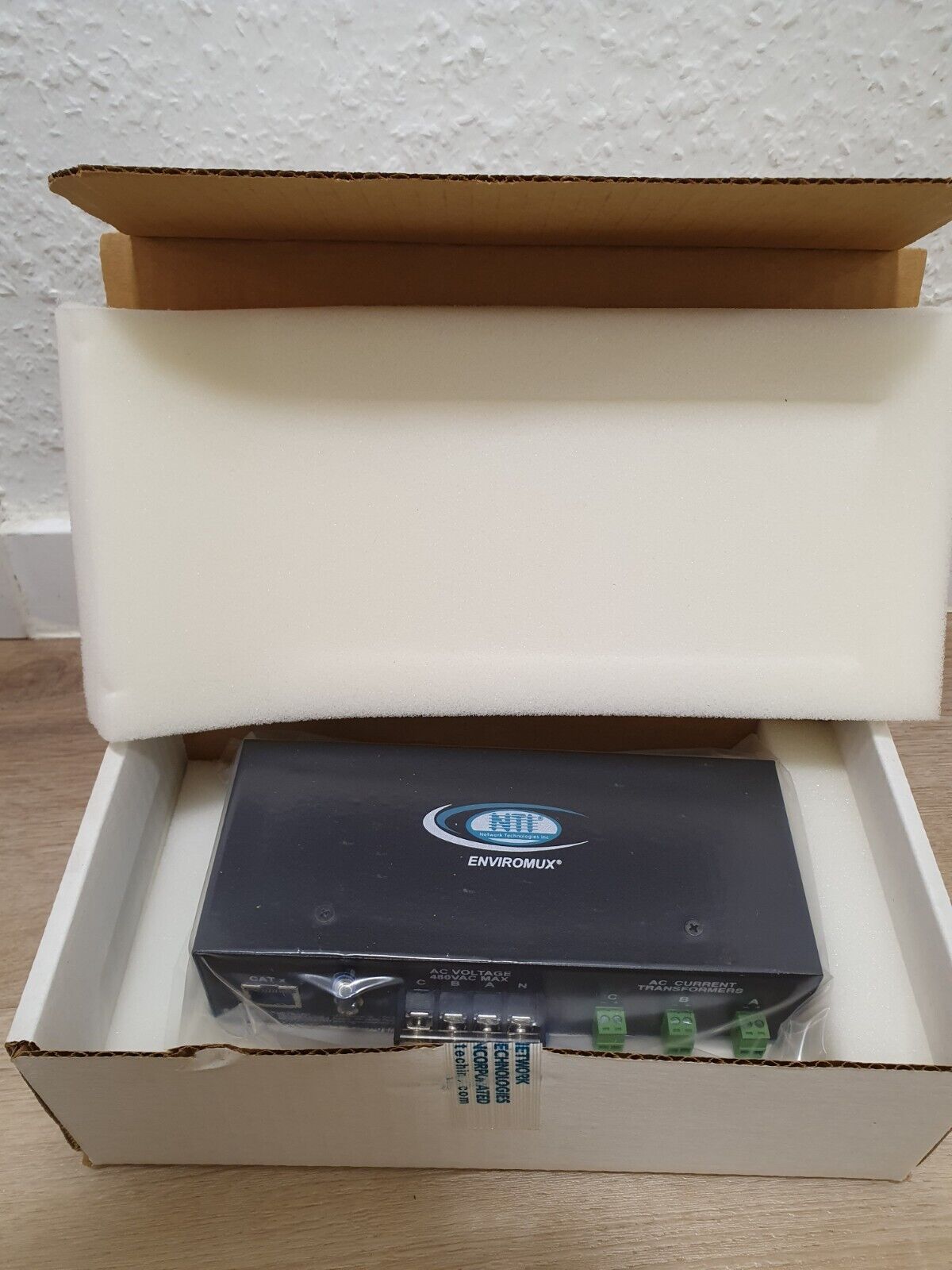

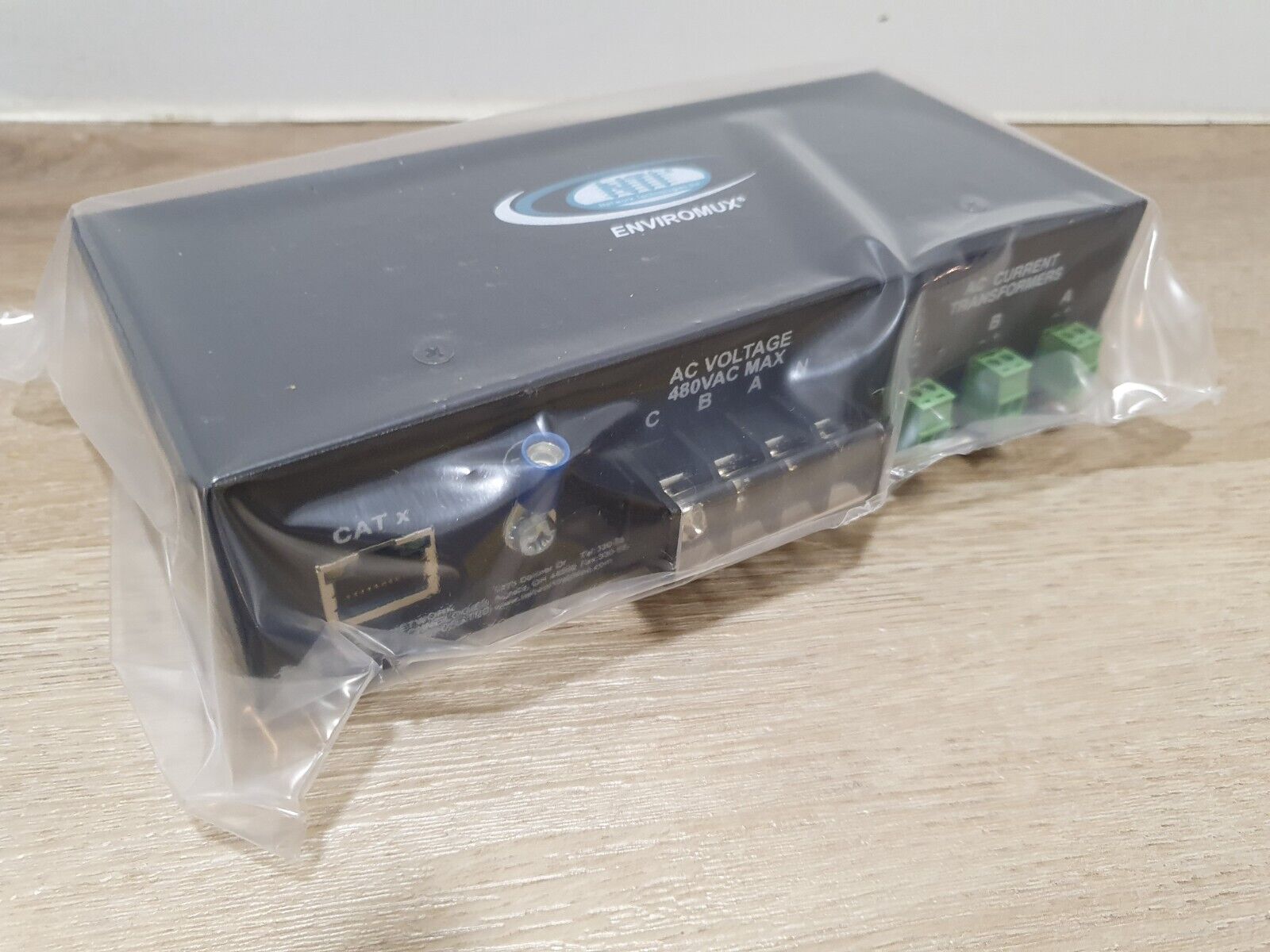

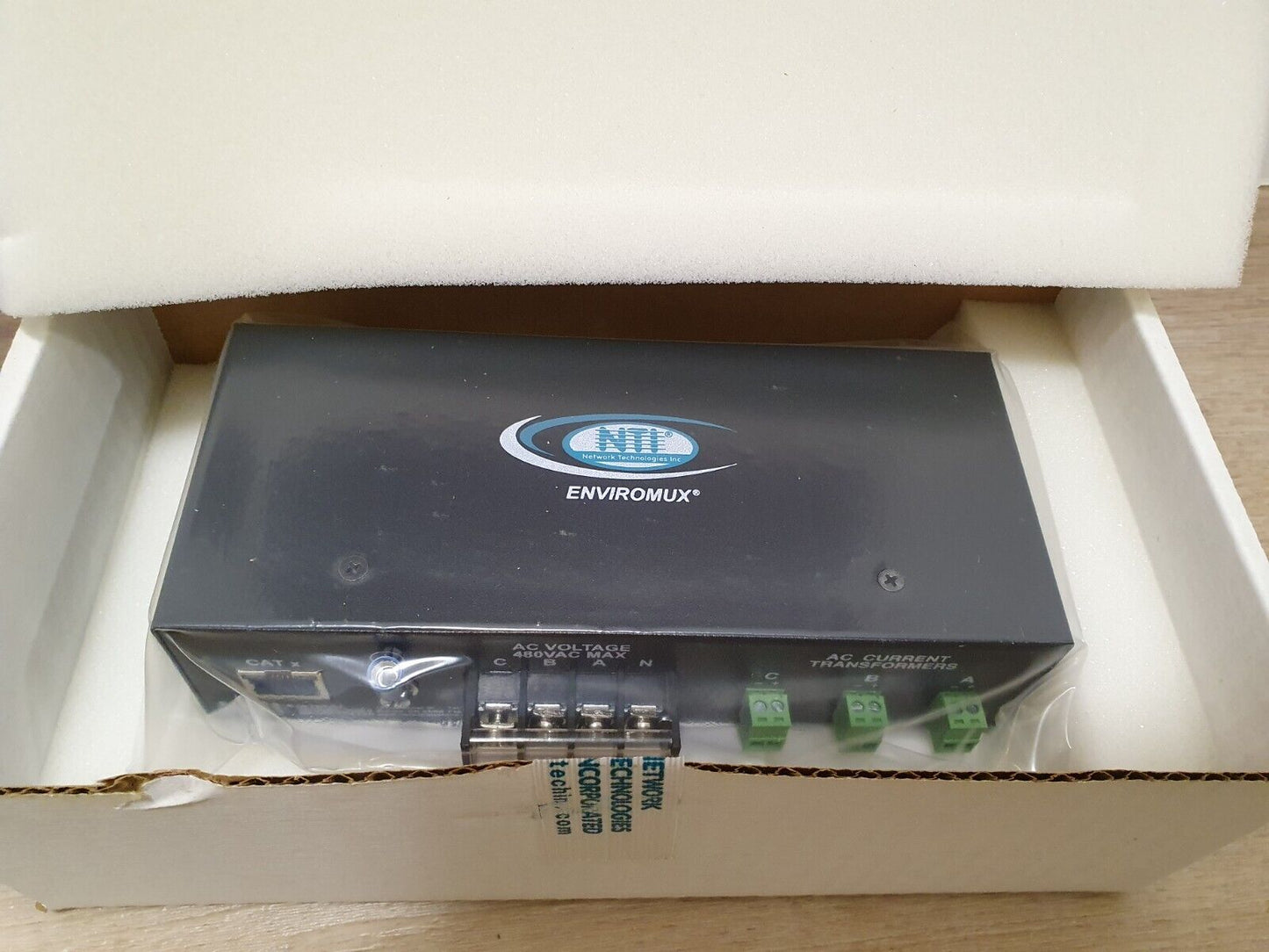

✔️ New & sealed in orignal Box

Features:

✔️ Modell: E-ACLM-3P480

✔️ Manufacturer: NTI, Network Technologies Incorporated USA


Measured and Reported Values:

True RMS Voltage
RMS Current
Active Power
Reactive Power
Frequency, phase angle, and power factor (not used for alerts or data logging)

Monitoring:
Monitors single or three-phase circuit (not multiple independent single-phase circuits)
Measurements per phase basis
  • Requirements:
    • Current and power measurements require current transformers (sold separately)
    • Measurement update rate: once per second (via software)
    • Supports 24 AWG CAT5/5e/6 cable up to 300 feet (91 m)

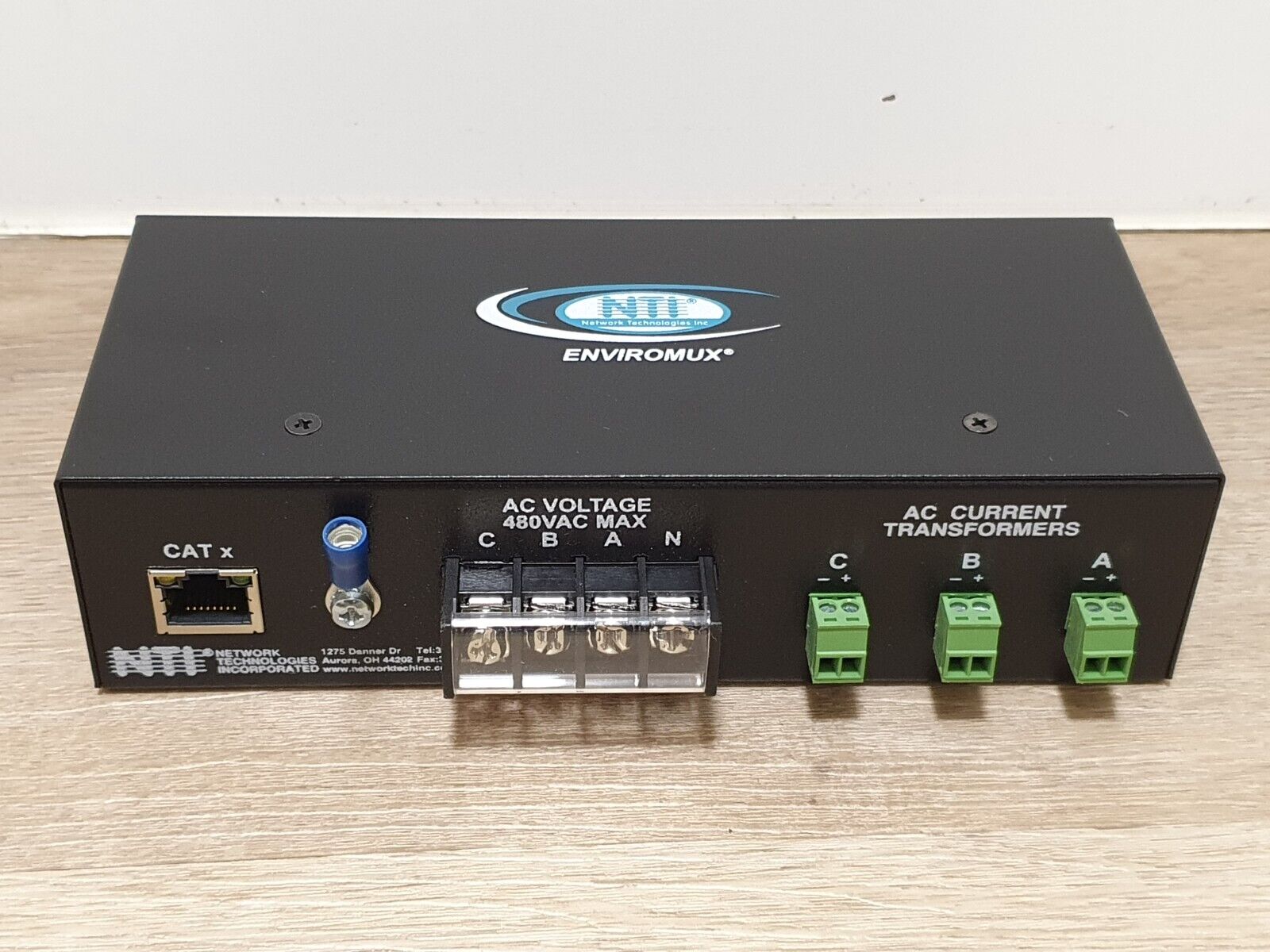

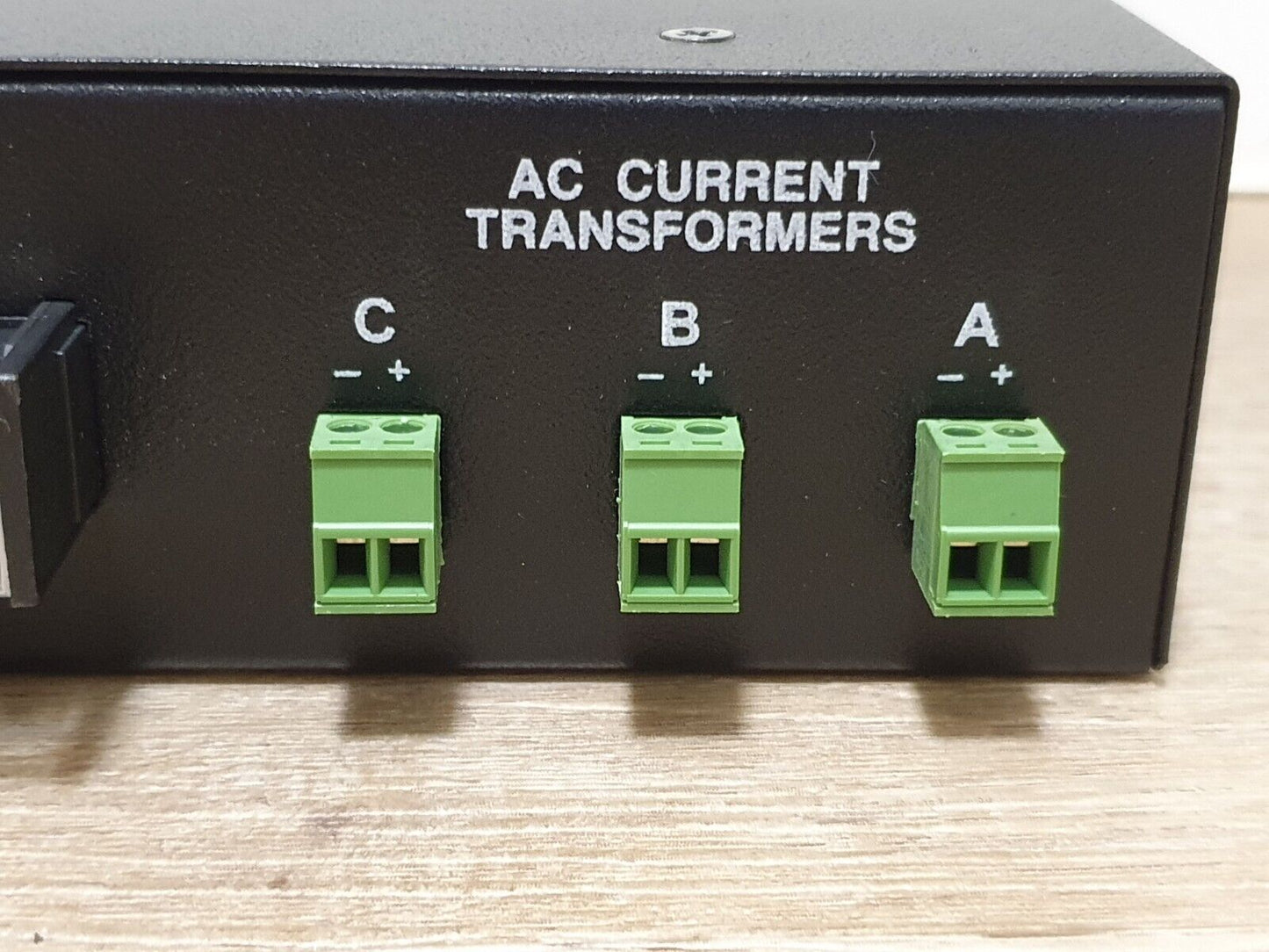

  • Current Transformer Connection:
    • Three 2-wire terminal blocks for easy attachment of optional current transformers (16-26 AWG wires)
    • Split-core current transformers allow installation without disconnecting conductors
    • Accuracy and range depend on current transformer used

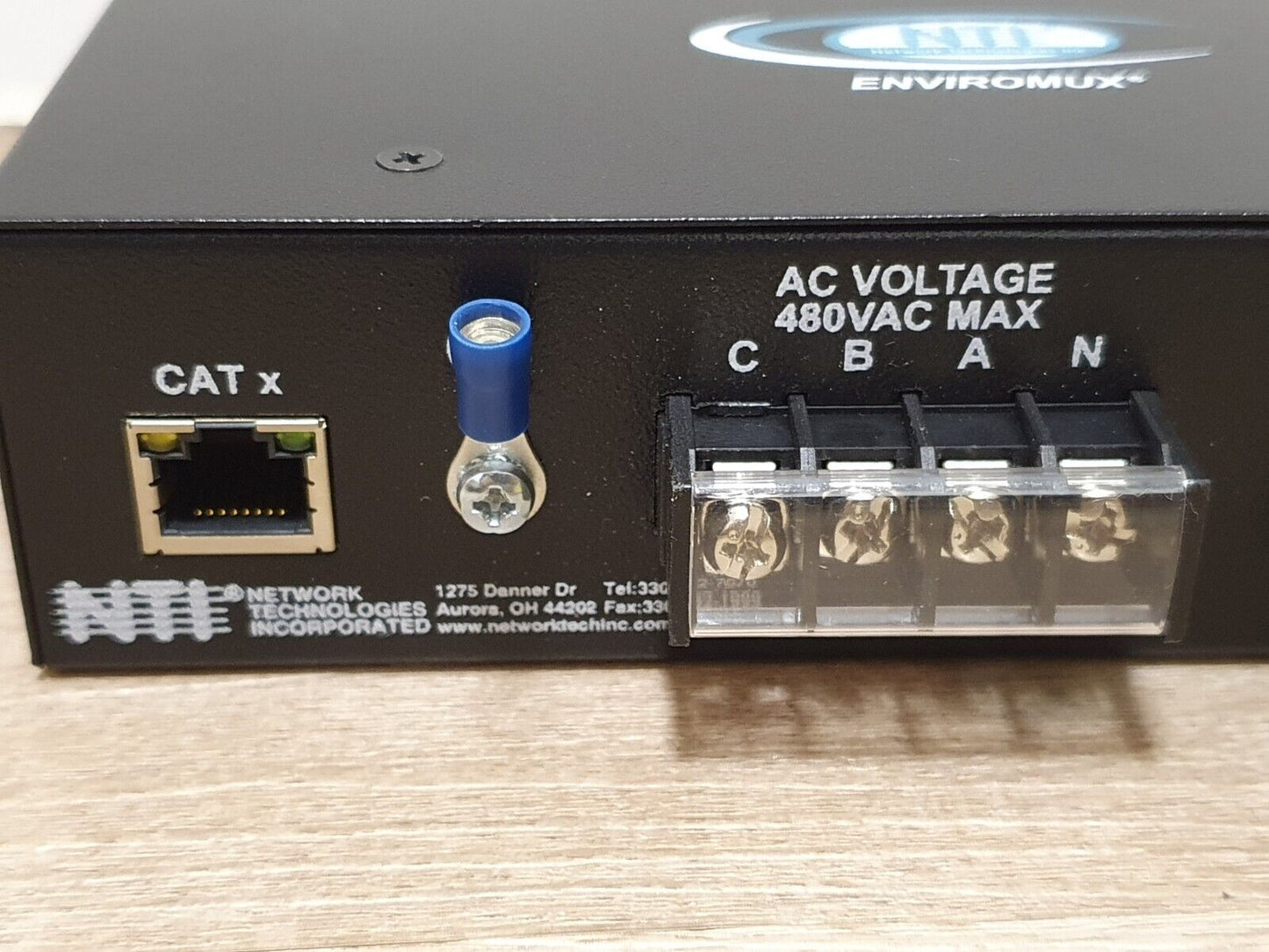

  • Voltage Specifications:
    • Input primary voltage: Up to 552 VAC RMS, 2000 VDC
    • Isolated 4-wire terminal block for primary voltage sample (bare-wire or crimp terminal)
  • Electrical Details:
    • Frequency: 50/60 Hz
    • Maximum primary current: limited by current transformer used
    • Powered by ENVIROMUX-2D/5D/16D
  • Dimensions:
    • Dimensions (WxDxH): 6.82 x 3.0 x 1.725 inches (173 x 76 x 44 mm)

    Other:
    • Compatible with ENVIROMUX-FSC Fiber Converter/Extender
    • Extends sensor up to 1.2 miles (2 km) from ENVIROMUX unit


    • Item-ID: E-ACLM-3P480


    If you have any questions, please contact us!
    we always respond within 24 hours.


    For buyers within the EU, VAT is shown separately on the invoice.
